  1. Transaction Management

External Transaction Identifier

Usage Of External Transaction Identifiers in PayConex V4 API

Overview

In the PayConex V4 API, the external transaction identifier enables the merchant to specify their own unique identifier for either CP or CNP transactions.


📘

Note

This functionality falls into the Transaction Management category as it is possible to use the database entry extTransactionId for either processing a CNP or CP transaction.

Before checking out this page, make sure you are up to speed with:


Configuration Settings

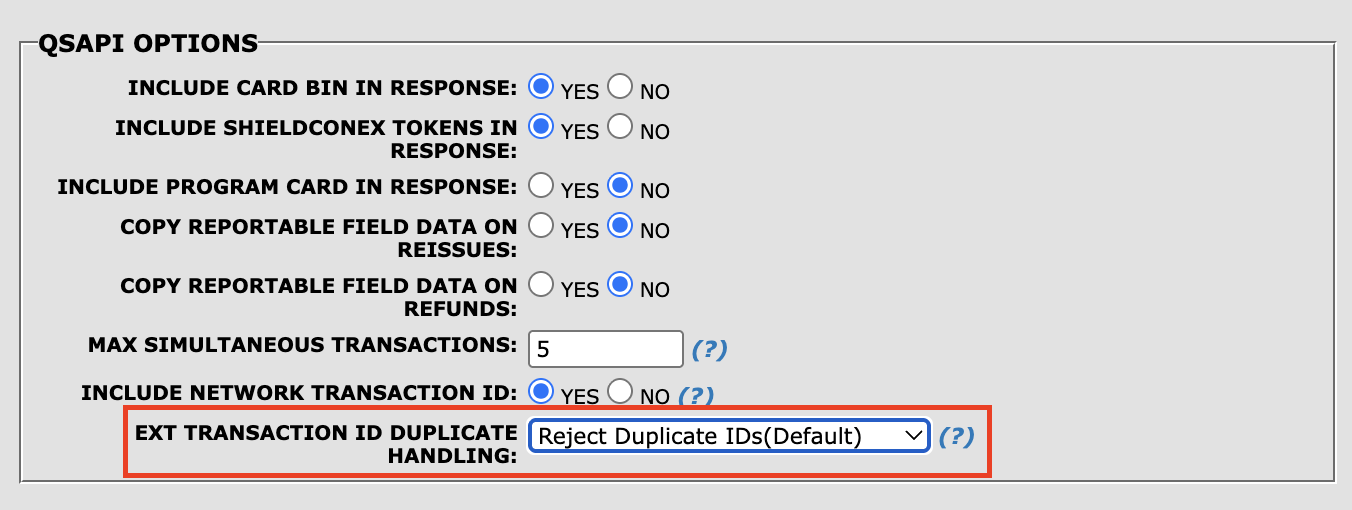

Depending on your business/integration requirements, the PayConex Portal allows you to choose one of the following three behaviors for handling extTransactionId:

Return Original Transaction (Replay Behaviour)

If a duplicate extTransactionId is received, the system returns the details of the originally authorized transaction (idempotency mode).

  • The API includes the property "replayed": true in the response to indicate that it has returned the metadata of the original transaction instead of processing a new one.

Reject Duplicates

If a duplicate extTransactionId is detected, the request is rejected with an error. This is the strictest setting.

  • Similar to the PayConex transactionId, the extTransactionId can be a unique, one-time identifier.
  • It must be unique for each transaction — you cannot reuse the same extTransactionId across multiple transactions.
  • The merchant is responsible for ensuring their identifier generation logic always produces unique values.
  • Recommendation: Use a reliable method such as UUIDs, a combination of timestamp + sequence number, or your internal order/invoice ID system to guarantee uniqueness.

Retry on Decline/Failure (Retry Behaviour)

If the original transaction was declined or failed, this mode enables you to attempt to re-run the authorization (Sale or Auth) using the same extTransactionId as a new payment attempt using the new request details. Otherwise, the transaction never proceeds to the authorization and returns an error message indicating that the transaction has already been processed.

  • The extTransactionId is particularly effective for implementing safe transaction retries.
  • While giving you flexibility to retry in case of temporary failures, this design never generates potential duplicate charges and prevents any double-processing in success cases.
  • The most common scenario for this is the offline transaction use case described below.

📘

Configuration Setup

Once you have chosen the desired option, you can enable and use only one option at a time.

For assistance with selecting the best option for your needs and having it properly configured, please contact the Bluefin Integrations Team at [email protected].



Understanding the Different Transaction Identifiers

IdentifierGenerated ByPurposeKey Characteristics
transactionIdPayConexPrimary identifier for all transactions in PayConexSystem-generated, unique, immutable
customIdMerchantUsed solely for reporting and search purposesUnique per transaction, great for your internal references
extTransactionIdMerchantAdvanced transaction management within the PayConex Payment GatewayMore powerful; supports advanced operations and customized workflows such as Offline Transactions below
📘

Consistent Use of the External Transaction Identifier

Even if you are already using extTransactionId in your current flows, we recommend applying it consistently to all transactions regardless of the use case (see below).

This creates a uniform approach that simplifies development, debugging, and long-term transaction management.


Assigning External Transaction Identifier

Via trace.extTransactionId in a POST request, the external transaction identifier can be assigned during:


Transaction Initialization

POST /api/v4/accounts/{accountId}/payments/init

{
  "description": "Pre-fetched transaction #01",
  "trace": {
    "extTransactionId": "myid_0001234567"
  },
  "customer": {
    "name": "Alice",
    "billingAddress": {
      "address1": "address1",
      "address2": "address2",
      "city": "Kansas City",
      "state": "MO",
      "zip": "90210",
      "country": "USA",
      "company": "Acme Inc."
    }
  },
  "shippingAddress": {
    "address1": "address1",
    "address2": "address2",
    "city": "Kansas City",
    "state": "MO",
    "zip": "90210",
    "country": "USA",
    "company": "Acme Inc.",
    "recipient": "Alice Smith"
  }
}

*Required Scopes: pcx:payments:*, pcx:payments:create

📘

Subsequent Sale/Authorization

For a subsequent sale/authorization based on the transaction initialization, see the Transaction Workflow below.


CNP Sale Transaction

POST /api/v4/accounts/{accountId}/payments/sale

{
  "trace": {
    "extTransactionId": "myid_00012345"
  },
  "posProfile": "ECOMMERCE",
  "amounts": {
    "total": "10.01",
    "currency": "USD"
  },
  "bfTokenReference": "PAYCONEX_TOKEN"
}

*Required Scopes: pcx:payments:*, pcx:payments:card_not_present:*, pcx:payments:card_not_present:sale


Device/CP Sale Transaction

POST /api/v4/accounts/{accountId}/payments/device-sale

{
  "trace": {
    "extTransactionId": "myid_000123456"
  },
  "credentialOnFile": {
    "scheduleIndicator": "UNSCHEDULED"
  },
  "tenderType": "CREDIT",
  "entryMode": "KEYED",
  "posProfile": "ATTENDED_ON_PREM_POS",
  "deviceProfile": "PAX_A80",
  "amounts": {
    "currency": "USD",
    "total": "27.50"
  },
  "card": {
    "expiry": "1230",
    "p2pe": {
      "cvv": "BC53B84FA4B8F12C",
      "ksn": "FFFF9876540002400195",
      "pan": "B3804311123638D"
    },
    "masked": {
      "pan": ""
    }
  },
  "device": {
    "type": "A920",
    "serial": "0820617507",
    "app": "BluePOS",
    "appVersion": "1.0.0",
    "osVersion": "PayDroid 6.3",
    "capabilities": "E0F8C8"
  }
}

*Required Scopes: pcx:payments:*, pcx:payments:device:*, pcx:payments:device:sale


🚧 extTransactionId Validation Rules


The extTransactionId can contain alphanumeric characters, hyphens (-), and underscores (_).

It must match the following regular expression:

^[A-Za-z0-9._-]+$

Allowed characters:

  • Uppercase letters: A–Z
  • Lowercase letters: a–z
  • Numbers: 0–9
  • Hyphen: -
  • Underscore: _
  • Dot: .

Examples of valid extTransactionId include:

  • ORDER-12345

  • INV_20260429_001

  • STORE05-REFUND-987

  • offline_txn_abc123

  • MY.OFFLINE.TXN.001

  • myid_0001234567

The extTransactionId must be at least 1 character and no more than 50 characters in length.

{
  "message": "Request validation error: Does not conform to API schema.",
 "errorCode": "40001",
  "errorType": "invalid_request",
 "source": "Request",
  "value": null,
  "traceId": "4734bd16-bc32-483e-be9a-365aa7dea5dc",
  "details": [
    {
      "source": "$.trace.extTransactionId",
      "value": "",
      "message": "Payload schema violation: minimum string length is 1"
    }
  ]
}
{
  "message": "Request validation error: Does not conform to API schema.",
  "errorCode": "40001",
  "errorType": "invalid_request",
 "source": "Parameter",
  "value": null,
  "traceId": "8ad799a8-bf08-4a29-9415-e1cc1e330887",
  "details": [
    {
      "source": "Path Parameter",
      "value": "myid_000123456_100000000000000000000...",
      "message": "Invalid value for path parameter \"extTransactionId\": maximum string length is 50"
    }
  ]
}

If an extTransactionId with invalid characters is provided, the V4 API returns the following error message:

{
  "message": "Request validation error: Does not conform to API schema.",
  "errorCode": "40001",
  "errorType": "invalid_request",
  "source": "Request",
  "value": null,
  "traceId": "0663610a-8f92-4988-b3ce-8a63139a05b1",
  "details": [
    {
      "source": "$.trace.extTransactionId",
      "value": null,
      "message": "Payload schema violation: string doesn't match the regular expression \"^[A-Za-z0-9._-]+$\""
    }
  ]
}


Getting Transaction by External Transaction ID

GET /api/v4/accounts/{accountId}/payments/by-ext-transaction/{extTransactionId}

*Required Scopes: pcx:payments:*, pcx:payments:read

📘

Same Permission Scopes

Note that this endpoint shares the same permission scopes as Getting Transaction Metadata via transactionId.


This endpoint retrieves the full transaction metadata using the merchant-supplied extTransactionId instead of the PayConex transactionId.

It behaves exactly the same as the standard Get Transaction Metadata endpoint:

  • It returns the identical response structure and data.
  • It shares the same permission scopes.

This endpoint is especially useful when you want to look up a transaction using your own external identifier.

For the full response object, refer to API Reference | Retrieve transaction by external transaction ID.


If no transaction is found under the specified extTransactionId, the V4 API returns the following response with HTTP 404.

For all the general error response codes, check out API Endpoint Overview | General V4 Error Response Codes.

{
  "message": "The requested entity was not found",
  "errorCode": 40004,
  "errorType": "not_found",
  "source": "Transaction",
  "value": "unknown",
  "traceId": "815e4e93-5c01-4f80-b559-ef79b5c746b7",
  "details": []
}



Return Original Transaction | Replay

With Return Original Transaction mode enabled, the Sale/Authorization endpoint does not reject duplicate extTransactionId requests. It simply returns the metadata of the original (authorized) transaction instead with the replayed property.

This level of flexibility ensures the idempotency of the transaction with a final status (CAPTURED, AUTHORIZED, DECLINED, FAILED, or another payment state).

For all of the transaction statuses, refer to Transaction Metadata | Status.


For example, let's say our first usage of myid_12378 is in the following sale transaction.

Request

POST /api/v4/accounts/{accountId}/payments/sale

{
  "trace": {
    "extTransactionId": "myid_12378"
  },
  "posProfile": "ECOMMERCE",
  "amounts": {
    "total": "12.00",
    "currency": "USD"
  },
  "bfTokenReference": "PAYCONEX_TOKEN"
}

*Required Scopes: pcx:payments:*, pcx:payments:card_not_present:*, pcx:payments:card_not_present:sale

Since no such extTransactionId exists, the PayConex Payment Gateway will process/authorize that sale transaction request.

Response

{
  "transactionId": "000000095366",
  "status": "CAPTURED",
  "timestamp": "2026-05-05T14:03:29.000000Z",
  "trace": {
    "sourceIp": "10.18.5.139",
    "history": [
      {
        "action": "transaction",
        "requestId": "3b8ed743-ff00-4ebe-95e0-62169494c704",
        "correlationId": "f6d1aaaf-2b6b-4265-a47d-4aa04716636f",
        "timestamp": "2026-05-05T09:03:26-05:00"
      }
    ],
    "networkTransactionId": "016125521395965G087",
    "extTransactionId": "myid_12378"
  },
  "amounts": {
    "currency": "USD",
    "approved": "12.00",
    "requested": "12.00",
    "balance": "12.00"
  },
  "auth": {
    "code": "OK0213",
    "processorMessage": "APPROVED",
    "message": "APPROVED",
    "networkName": "VISA",
    "avsResponseCode": "Y"
  },
  "card": {
    "name": "Alice",
    "last4": "1111",
    "expiry": "1226",
    "brand": "VISA"
  },
  "binData": {
    "program": "UNKNOWN"
  },
  "transactionType": "SALE",
  "entryMode": "KEYED",
  "refundObject": {
    "refundBalance": "12.00"
  }
}

Request

If we now try to process another sale transaction under the same extTransactionId (regardless of the amount and bfTokenReference), the V4 API returns the same original (authorized) transaction if we compare the transactionIds.

📘

Note

The API includes the property "replayed": true in the response to indicate that it has returned the metadata of the original transaction instead of processing a new one.

POST /api/v4/accounts/{accountId}/payments/sale

{
  "trace": {
    "extTransactionId": "myid_12378"
  },
  "posProfile": "ECOMMERCE",
  "amounts": {
    "total": "10.00",
    "currency": "USD"
  },
  "bfTokenReference": "PAYCONEX_TOKEN"
}

*Required Scopes: pcx:payments:*, pcx:payments:card_not_present:*, pcx:payments:card_not_present:sale

Response

{
  "transactionId": "000000095366",
  "status": "CAPTURED",
  "timestamp": "2026-05-05T14:03:29.000000Z",
  "trace": {
    "sourceIp": "10.18.5.139",
    "history": [
      {
        "action": "transaction",
        "requestId": "3b8ed743-ff00-4ebe-95e0-62169494c704",
        "correlationId": "f6d1aaaf-2b6b-4265-a47d-4aa04716636f",
        "timestamp": "2026-05-05T09:03:26-05:00"
      }
    ],
    "networkTransactionId": "016125521395965G087",
    "extTransactionId": "myid_12378",
    "replayed": true
  },
  "amounts": {
    "currency": "USD",
    "approved": "12.00",
    "requested": "12.00",
    "balance": "12.00"
  },
  "auth": {
    "code": "OK0213",
    "processorMessage": "APPROVED",
    "message": "APPROVED",
    "networkName": "VISA",
    "avsResponseCode": "Y"
  },
  "card": {
    "name": "Alice",
    "last4": "1111",
    "expiry": "1226",
    "brand": "VISA"
  },
  "binData": {
    "program": "UNKNOWN"
  },
  "transactionType": "SALE",
  "entryMode": "KEYED",
  "refundObject": {
    "refundBalance": "12.00"
  }
}



Offline Transactions

While the extTransactionId can be used for either Card-Present (CP) or Card-Not-Present (CNP) transactions, one of its most valuable use cases is supporting offline transactions on payment terminals.

In order to capitalize on the offline transactions use case, the most effective configuration setting is Retry on Decline/Failure. This allows the merchant to retry processing a transaction during the next processing cycle in case the transaction has been temporarily declined or failed.


🚧

Note

Because offline transactions carry additional risk, it is the merchant's responsibility to decide whether to enable this use case.

A customer may present a card that has insufficient funds or would otherwise be declined at POI. With offline support enabled, the merchant can queue the transaction and retry authorization once connectivity is restored, potentially completing the charge at a later time.


The failed transaction statuses include:

ValueDescription
"DECLINED"The transaction was declined.
"FAILED"The transaction failed.

For all of the transaction statuses, refer to Transaction Metadata | Status.


Offline Mode Scenario

When a terminal loses connectivity (either due to network issues or manual offline mode), merchants can continue accepting payments securely.

Here is the breakdown of this use case:

  • The terminal (especially P2PE devices) can still read card data at POI/POS and generate the P2PE encrypted payment payload at the hardware level.
  • The merchant's offline middleware or SDK generates a unique extTransactionId for each transaction.
  • All transaction metadata and the encrypted payload are stored locally in an offline queue.
  • Once the terminal goes back online, the queued transactions are processed (via either Sale or Authorization) using the stored extTransactionId.
    • It is important to note that it is entirely up to the merchant to decide where the offline transactions will be processed. For example, the processing can either take place from the device terminal itself or the server backend.

This approach ensures no transactions are lost during outages and provides reliable recovery.

🚧

PCI Scope Requirement

Once a transaction has been successfully processed, the merchant must immediately purge the local record containing the P2PE payload from their system.

This is a mandatory PCI DSS compliance requirement to minimize the storage of sensitive cardholder data.

Key Benefits

  • Safe handling of transactions even when fully offline.
  • Prevents duplicate processing thanks to the unique extTransactionId.
  • The same extTransactionId can later be used for reporting, reconciliation, and transaction lookup in the PayConex Payment Gateway.


Collecting Offline Transactions and Processing After Reconnecting

When a terminal operates in offline mode, transactions are securely stored locally in a queue so it can process the queued transactions efficiently once back online.

Let's say the device has queued the following transactions while in the offline mode.

{
  "offlineQueue": [
    {
      "tenderType": "CREDIT",
      "entryMode": "KEYED",
      "posProfile": "ATTENDED_ON_PREM_POS",
      "deviceProfile": "PAX_POINTCONEX",
      "amounts": {
        "currency": "USD",
        "total": "15.00"
      },
      "card": {
        "expiry": "1229",
        // P2PE Encrypted Payload generated by terminal on hardware-level
        "p2pe": {
          "cvv": "BC53B84FA4B8F12D",
          "ksn": "FFFF987654016B600344",
          "pan": "21A2F929CFB552BD84B5374D1123D165"
        }
      },
      "device": {
        "type": "A920",
        "serial": "0820617507",
        "app": "PointConex",
        "appVersion": "1.0.0",
        "osVersion": "PayDroid 6.3",
        "capabilities": "E0F8C8"
      },
      "trace": {
        // GENERATED BY THE MERCHANT OFFLINE SDK/MIDDLEWARE
        "extTransactionId": "OFFLINE-20260428-001"
      }
    },
    {
      "tenderType": "CREDIT",
      "entryMode": "KEYED",
      "posProfile": "ATTENDED_ON_PREM_POS",
      "deviceProfile": "PAX_POINTCONEX",
      "amounts": {
        "currency": "USD",
        "total": "10.00"
      },
      "card": {
        "expiry": "1230",
        // P2PE Encrypted Payload generated by terminal on hardware-level
        "p2pe": {
          "cvv": "BC53B84FA4B8F12C",
          "ksn": "FFFF987654016B600366",
          "pan": "20A1F829CFB552BD84B5374D1123D164"
        }
      },
      "device": {
        "type": "A920",
        "serial": "0820617507",
        "app": "PointConex",
        "appVersion": "1.0.0",
        "osVersion": "PayDroid 6.3",
        "capabilities": "E0F8C8"
      },
      "trace": {
        // GENERATED BY THE MERCHANT OFFLINE SDK/MIDDLEWARE
        "extTransactionId": "OFFLINE-20260428-002"
      }
    }
  ]
}

Once the terminal regains connectivity, the recommended flow is to iterate over each transaction in the queue and:

  1. Process Transaction | Decision Logic

    1. With Retry on Decline/Failure enabled, using the extTransactionId the terminal HTTP client processes the sale/authorization transaction via respective PayConex API endpoints.

    2. If the transaction has been successfully processed, the merchant must immediately purge the local record containing the P2PE payload from their system.

      • This is a mandatory PCI DSS compliance requirement to minimize the storage of sensitive cardholder data.

    3. Retry Behaviour: If the transaction has been declined or has failed due to network problems or processor timeouts, this Retry on Decline/Failure mode enables you to process the new transaction request with the same extTransactionId during your next processing cycle or if you want to retry processing the current transaction.

      1. On retry, this is a new payment attempt using the new request details. The response reflects the outcome of the new attempt.
        1. It is important to note that this is a whole new transaction in the PayConex system
        2. With extTransactionId, there is no limit on retry attempts for a transaction. You can safely retry as many times as needed until the transaction is successfully authorized.
      2. For tracking purposes, the new attempt "tags" the extTransactionId of the previous transaction so that the merchant can break down the number of declined/failed transactions up to that point using the base extTransactionId.
      3. For all of the transaction statuses, refer to Transaction Metadata | Status.

  2. Post-Processing Once the transaction has been successfully authorized or completed, it is optimal to switch to using the PayConex-generated transactionId for all subsequent operations (refunds, voids, captures, reporting, etc.).

    • As highlighted above, even if you are already using extTransactionId in your current flows, we recommend applying it consistently to all transactions (online and offline).

This approach ensures safe recovery from offline mode.



External Transaction Identifier | Storage Behavior

The extTransactionId is stored in the PayConex database only when the transaction request receives a successful 2xx HTTP status code from the PayConex endpoint.

If an error occurs (e.g., validation error, internal server error, or any non-2xx response), the extTransactionId is not stored. In such cases, the transaction entry is not created in the system.

{
  "message": "Request validation error: Does not conform to API schema.",
  "errorCode": "40001",
  "errorType": "invalid_request",
  "source": "Request",
  "value": null,
  "traceId": "aaa7fd3f-0c9c-4a88-b2e4-b4a22cfe242b",
  "details": [
    {
      "source": "$.amounts.total",
      "value": "10.0.",
      "message": "Payload schema violation: string doesn't match the regular expression \"^\\d+(\\.\\d{0,2})?$\""
    }
  ]
}

If you need the extTransactionId to persisted beforehand, you can follow the Transaction Initialization Workflow described below.

This pattern ensures you can reliably track and manage transactions — even when errors or network issues occur — by first initializing the transaction before attempting authorization.



Transaction Workflow

Similar to the Standard PayConex transactionId workflow, the following process is recommended when you choose to use the Transaction Initialization endpoint with an extTransactionId.

📘

Demand

Due to the flexibility of the extTransactionId configuration settings, this particular workflow is less commonly used, but it remains supported if the merchant prefers or requires it.

1. Transaction Initialization

First, initialize the transaction with the chosen extTransactionId.

Benefits:

  • Creates a transaction record in the system immediately.
  • Allows you to safely look up the transaction using the extTransactionId if a communication error, timeout, packet loss, or network issue occurs.
  • Enables the developer to call the Get Transaction Metadata by external ID endpoint to check the current status (e.g., whether the transaction was successfully authorized, declined, or is still pending).

This step acts as a safeguard against duplicate transactions and provides better error recovery.

Request Example

POST /api/v4/accounts/{accountId}/payments/init

{
  "description": "Pre-fetched transaction #02",
  "trace": {
    "extTransactionId": "myid_1234"
  },
}

*Required Scopes: pcx:payments:*, pcx:payments:create

2. Sale / Authorization

Once the transaction is initialized, perform the Sale or Authorization.

Important Behavior:

  • You can safely retry the Sale or Authorization request multiple times with the same extTransactionId until the transaction receives a final status (CAPTURED, AUTHORIZED, DECLINED, or another payment state) and there are no network-related errors.
  • The transaction will remain in INITIALIZED status until it is successfully processed.

Request Example

After the transaction was securely stored via the transaction initialization above, we can then reuse the same extTransactionId.

POST /api/v4/accounts/{accountId}/payments/sale

{
  "trace": {
    "extTransactionId": "myid_00012345"
  },
  "posProfile": "ECOMMERCE",
  "amounts": {
    "total": "10.01",
    "currency": "USD"
  },
  "bfTokenReference": "PAYCONEX_TOKEN"
}

*Required Scopes: pcx:payments:*, pcx:payments:card_not_present:*, pcx:payments:card_not_present:sale

This can either be CNP Sale/Authorization or CP Sale/Authorization.


Updated 3 months ago

Did this page help you?

Updated 3 months ago

Did this page help you?
